Choosing Between Long and Short Fiber Reinforced Composite Materials: Properties, Pros, and Applications

By Mufaddal Shakir

8/19/20257 min read

Composite materials have transformed industries ranging from automobiles to aerospace, mainly because they provide an exceptional balance between strength, weight, and durability. Among composites, long fiber composites (LFCs) and short fiber composites (SFCs) are two categories that often spark debate among engineers, manufacturers, and researchers. While both serve the same fundamental purpose, combining reinforcement with a matrix for superior performance, their structure, processing, and applications vary dramatically.

In this article, we’ll explore:

What are the fundamental differences between long and short fiber composites?
How do they differ in mechanical properties?
Manufacturing methods
Real-world applications
Unique insights into their sustainability and future potential

This will help you not only understand the "what" but also the "why" behind choosing one over the other.

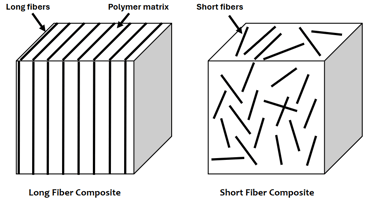

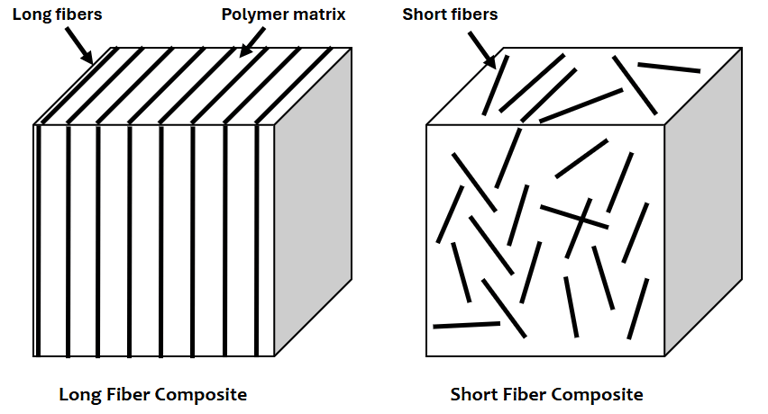

1) Structural Difference: Long vs Short Fibers

The orientation and length of fibers are the most defining structural differences between LFCs and SFCs. This difference directly governs how loads are transferred and distributed within the material. Before understanding the structural difference, we should have knowledge about Critical Fiber Length (Lc). A key concept is that fibers must be longer than the critical length for allowing effective stress transfer. If fibers are shorter than Lc, the matrix cannot fully utilize their strength, which is why SFCs generally exhibit lower mechanical performance.

Long Fiber Composites:

Fiber length is greater than the critical fiber length (several millimeters to centimeters).
Fibers are often continuous or chopped but still long enough to span large sections of the polymer matrix.
They can be oriented (aligned) during processing, creating directional properties. For example, in a carbon fiber-reinforced panel, fibers are deliberately aligned along the direction of maximum load to maximize stiffness and strength.
This alignment allows long fibers to act as efficient bridges, distributing stresses over a larger area and minimizing crack propagation.

Short Fiber Composites:

Fiber length is less than or close to the critical length (usually below 1 mm).
Fibers are dispersed randomly within the matrix, leading to isotropic reinforcement, where properties are more uniform in all directions but generally weaker compared to aligned long fibers.
Short fibers primarily strengthen the matrix locally, preventing microcracks from spreading but without forming long stress paths.
The short length makes them easier to mix and mold but limits their efficiency in stress transfer.

Example:

If the rope runs continuously through the block (like long fibers), it carries most of the load.
If the rope pieces are very short (like short fibers), they only locally strengthen the concrete but don’t carry the overall load efficiently.

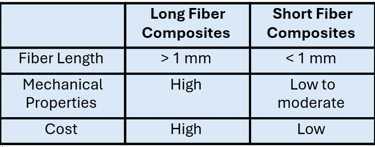

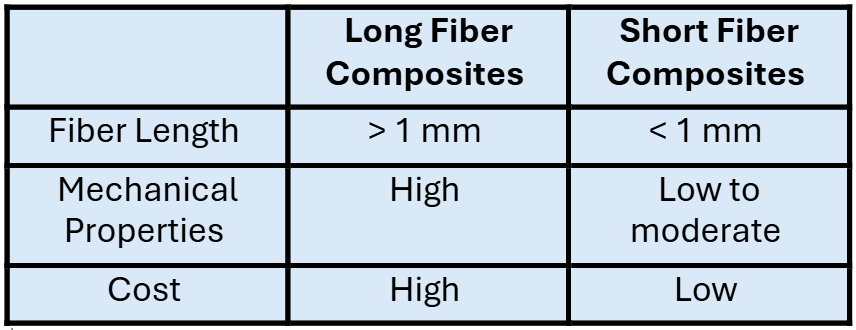

A comparison of the Fiber length, mechanical properties, and cost of long vs short fiber composites

2) Comparison of Mechanical Behaviour

Mechanical properties are the most critical deciding factor in choosing between long and short fiber composites. Their differences are rooted in stress transfer, fiber-matrix adhesion, and load-bearing ability.

Why LFCs have better mechanical properties?

Longer load paths mean stress is distributed across the fiber length.
Fiber pull-out mechanism improves toughness and impact resistance.
Orientation control allows for anisotropic design tailored to structural needs.

Why SFCs are beneficial despite having lower mechanical properties?

They improve base polymer performance significantly compared to unreinforced plastics.
Their random dispersion provides isotropic properties, useful where multi-directional loading occurs.
They balance mechanical enhancement with ease of processing and cost efficiency.

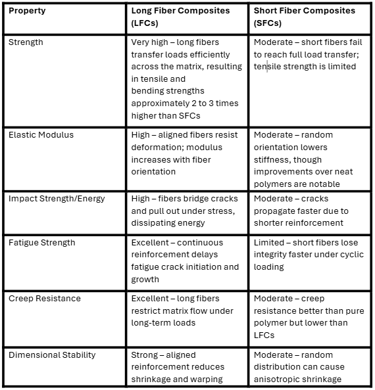

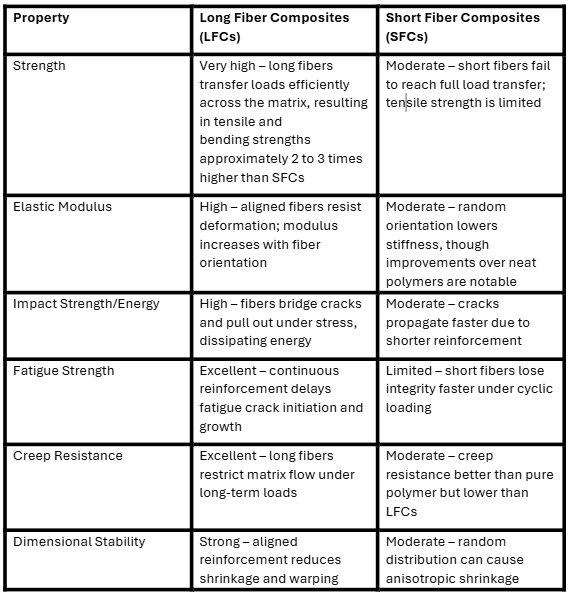

Mechanical properties of long vs short fiber composites

3) Manufacturing Methods

a) Short Fiber Composites (SFCs):

SFCs are generally easier and faster to manufacture due to their random fiber orientation and lower processing requirements.

Injection Molding: This is the most common method for fabricating SFCs. Chopped fibers (3–10 mm) are mixed with polymer matrix and injected into a mold. Advantages include high production speed, good repeatability, and complex shapes. However, fiber length can be further reduced during processing, which may reduce strength.
Compression Molding: Used for high-volume automotive parts. Fiber-filled resin pellets are placed in a heated mold, compressed, and cured into shape.
Extrusion & Pelletizing: Short fibers are blended with molten polymer and extruded into pellets, which are later re-melted during molding processes.
3D Printing (FDM with chopped fibers): SFCs are now being explored in additive manufacturing, allowing customized geometries with embedded reinforcement.

Advantages: Cost-effective, high-volume production, complex geometries possible.
Limitations: Lower mechanical properties due to random orientation and shorter fiber length.

b) Long Fiber Composites (LFCs):

Processing LFCs requires more careful handling to maintain fiber alignment and critical fiber length for strength.

Pultrusion: Continuous fibers are pulled through a resin bath and then through heated dies to cure into constant cross-sectional profiles (e.g., beams, rods, and rails). Provides excellent fiber alignment.
Resin Transfer Molding (RTM): Dry fiber mats or fabrics are placed in a mold, and resin is injected under pressure. Used in aerospace and automotive for structural parts (e.g., BMW i3 CFRP chassis).
Filament Winding: Continuous fibers are wound around a rotating mandrel with resin application, ideal for cylindrical shapes like pressure vessels and pipes.
Autoclave Processing: Fiber prepregs (fibers pre-impregnated with resin) are laid up in layers, vacuum-bagged, and cured under high temperature and pressure in an autoclave. Critical for aerospace-grade LFCs like in Boeing 787 and Airbus A350.
Additive Manufacturing (Continuous Fiber 3D Printing): Newer technology where continuous carbon or glass fibers are deposited along with thermoplastic resin, producing parts stronger than chopped fiber composites.

Advantages: Superior strength, stiffness, fatigue resistance, and design flexibility for high-performance applications.
Limitations: Higher cost, slower production rates, complex processing equipment required.

c) Hybrid & Emerging Methods:

Long Fiber Thermoplastic (LFT) Injection Molding: A hybrid where fiber bundles (longer than typical SFCs, 10–25 mm) are directly fed into injection molding. Balances strength and manufacturability.
Out-of-Autoclave (OOA) Curing: Lower-cost alternative to autoclaves using vacuum-assisted resin infusion processes.
Automated Fiber Placement (AFP): Robotic system that lays down continuous fiber tapes layer by layer, used in advanced aerospace structures.

4) Real-World Applications

Both LFCs and SFCs have distinct niches depending on whether performance or scalability is prioritized.

Case Study Examples:

Aerospace: Boeing 787 Dreamliner’s fuselage uses long carbon fiber composites for weight reduction and structural integrity. Meanwhile, seat-back trays and interior fittings are made from short glass fiber composites due to their lower cost and adequate performance.
Automotive: BMW’s i-series incorporates carbon fiber LFCs in its passenger cell for crash safety and lightweighting. At the same time, short glass fiber composites are used in dashboards, intake manifolds, and under-the-hood components for cost savings.
Sports: A professional racing bicycle uses long carbon fiber composites for the frame to achieve the best strength-to-weight ratio, whereas its accessories (pedal casings, helmet shells) rely on short fiber composites.
Consumer Electronics: Apple and Dell use long carbon fiber-reinforced composites in laptops and tablets for stiffness, whereas daily housings and appliances (vacuum cleaner covers, fans) often use short fiber-reinforced composites.

These examples show us that industries mostly utilize both types of fibers (long & short) together, optimizing each for the most suitable application.

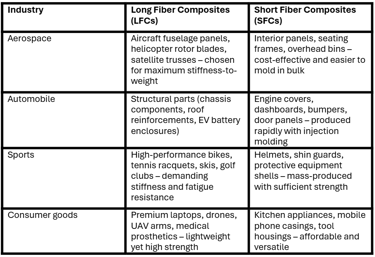

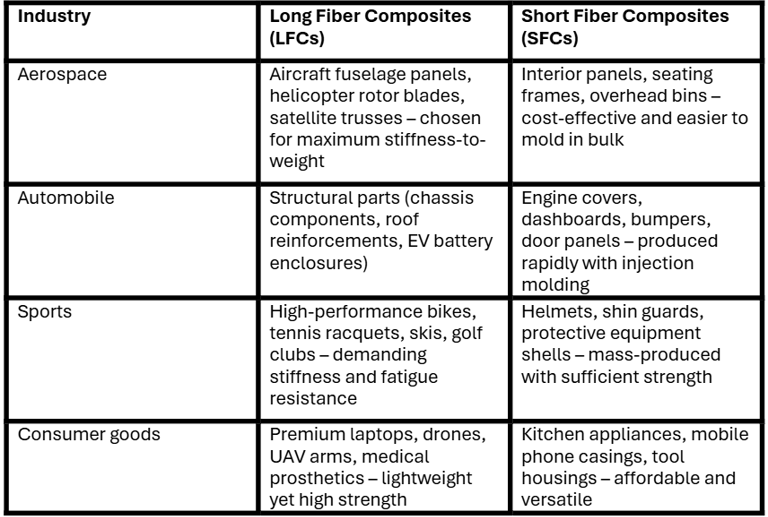

Applications of long vs short fiber composites

5) Unique Insights: Beyond Conventional Comparison

a) Hybrid Composites are Bridging the Gap

Recent studies show hybrid composites that mix long and short fibers in the same matrix can optimize cost vs performance. For instance, a hybrid of long carbon fibers and short glass fibers in a polypropylene matrix provides enhanced stiffness without significantly raising costs.

b) 3D Printing Opens New Possibilities

With 3D printing of continuous fiber composites, industries can now customize fiber orientation on-demand. For example, Markforged’s 3D printed carbon fiber bicycle frames use continuous fibers along stress paths, while embedding short fibers elsewhere to reduce weight.

c) Sustainability and Recycling Concerns

LFCs are difficult to recycle due to long fiber entanglement and thermoset matrices whereas SFCs are easier to recycle (particularly thermoplastic-based SFCs) and can incorporate recycled fibers from LFC waste. This opens new discussions about using SFCs as a "second life" solution for high-value LFC scrap, a concept gaining traction in the automotive and wind energy sectors.

d) Performance vs Economics: A Real-World Perspective

Airbus and Boeing still rely heavily on long carbon fiber composites for strength-to-weight optimization in structural parts. Meanwhile, automakers like Toyota and Volkswagen increasingly prefer short glass fiber composites for high-volume, low-cost production of non-critical components.

6)The Future Outlook

LFCs will continue to dominate high-performance, safety-critical industries like aerospace, defense, and sports.
SFCs will remain the workhorse of mass manufacturing, especially as sustainability and recycling solutions improve.
Hybrid solutions and 3D printing will blur the line, offering engineers more design freedom and tailored performance.

The debate of long vs short fiber composites isn’t about which is better, but about which is right for the application. Long fibers deliver unmatched strength and stiffness, while short fibers excel in cost efficiency and scalability. By strategically combining the two, and leveraging innovations like additive manufacturing, industries are paving the way toward composites that are not only high-performing but also sustainable.

In the near future, we may not ask "long or short fibers?" but instead, "how do we combine both smartly?"
